dc、icc、innovus等芯片中后端eda的脚本一般是tcl格式，但是eda基于扩展了很多很多命令，如果能够高亮这些eda命令，将大大方便了脚本的编写和修改。
dc、icc、innovus等芯片中后端eda的脚本一般是tcl格式，但是eda基于扩展了很多很多命令，如果能够高亮这些eda命令，将大大方便了脚本的编写和修改。
因此，总结了几点需求：
1、高亮tcl自身的关键字，如set、puts、for等。
2、注释、字符串显示高亮颜色
3、高亮标点符号，如[、]、{、}、/、\、*
4、支持自定义dc、icc、innovus等工具的命令为关键字，并指定颜色
5、支持常见后缀，如.tcl、.enc、.do、.cmd、.sdc、.view等
下面是经过实践，可用的一个emacs major mode，取名tcl-like-mode。
;;; tcl-like-mode.el --- major mode for tcl like file
;;; Code:
(defvar tcl-like-mode-syntax-table
(let ((st (make-syntax-table)))
(modify-syntax-entry ?% "_" st)
(modify-syntax-entry ?@ "_" st)
(modify-syntax-entry ?& "_" st)
(modify-syntax-entry ?* "_" st)
(modify-syntax-entry ?+ "_" st)
(modify-syntax-entry ?- "_" st)
(modify-syntax-entry ?. "_" st)
(modify-syntax-entry ?: "_" st)
(modify-syntax-entry ?! "_" st)
(modify-syntax-entry ?$ "_" st)
(modify-syntax-entry ?/ "_" st)
(modify-syntax-entry ?~ "_" st)
(modify-syntax-entry ?< "_" st)
(modify-syntax-entry ?= "_" st)
(modify-syntax-entry ?> "_" st)
(modify-syntax-entry ?| "_" st)
(modify-syntax-entry ?\( "()" st)
(modify-syntax-entry ?\) ")(" st)
(modify-syntax-entry ?\[ "()" st)
(modify-syntax-entry ?\] ")(" st)
(modify-syntax-entry ?\{ "()" st)
(modify-syntax-entry ?\} ")(" st)
(modify-syntax-entry ?\; "." st)
(modify-syntax-entry ?\n ">" st)
(modify-syntax-entry ?# "<" st)
st)
"Syntax table in use in `tcl-mode' buffers.")
(define-derived-mode tcl-like-mode prog-mode "TclLike"
"Major mode for script files (.tcl, .cmd, .do, .enc)."
(set-syntax-table tcl-like-mode-syntax-table)
;; font lock default
(setq font-lock-defaults
'((
;; comment
("#.*" 0 'font-lock-comment-face)
;; string
("\".*\"" 0 'font-lock-string-face)
;; punctuation
("[^a-z0-9A-z_#,]" 0 'punc-symbol-face)
("\\[" 0 'punc-symbol-face)
("\\]" 0 'punc-symbol-face)
;; dc cmd
("\\b\\(get_designs\\|set_svf\\|set_vsdc\\|elaborate\\|uniquify\\|write_file\\|set_driving_cell\\|set_max_capacitance\\|set_max_transition\\|set_max_fanout\\|set_load\\|set_max_area\\|foreach_in_collection\\|set_dont_touch\\|set_dont_touch_network\\|set_dont_use\\|set_fix_multiple_port_nets\\|create_scenario\\|set_operating_conditions\\|set_tlu_plus_files\\|set_active_scenarios\\|report_scenarios\\|set_clock_gating_style\\|set_clock_gating_objects\\|check_timing\\|set_preferred_routing_direction\\|extract_physical_constraints\\|set_optimize_registers\\|set_host_options\\|compile_ultra\\|report_clock_gating\\|report_area\\|report_constraints\\|report_timing\\|current_scenario\\|write_sdc\\|create_mw_lib\\|open_mw_lib\\|analyze\\|define_name_rules\\|change_names\\)\\b" 1 font-lock-function-name-face)
;; innovus cmd
("\\b\\(init_design\\|saveDesign\\|loadIoFile\\|setPreference\\|floorPlan\\|setObjFPlanPolygon\\|cutRow\\|addInst\\|attachTerm\\|deleteInst\\|dbQuery\\|add_welltap\\|saveNetlist\\|ecoPlace\\|setNanoRouteMode\\|ecoRoute\\|optDesign\\|editPin\\|setStreamOutMode\\|streamOut\\|setDesignMode\\|setExtractRCMode\\|extractRC\\|rcOut\\|set_ccopt_property\\|ccopt_design\\|dbGet\\|dbSet\\)\\b" 1 font-lock-function-name-face)
;; tcl keywords
("\\b\\(break\\|catch\\|cd\\|chan\\|clock\\|close\\|concat\\|continue\\|dict\\|eof\\|eval\\|exec\\|expr\\|file\\|for\\|foreach\\|format\\|gets\\|glob\\|global\\|if\\|incr\\|join\\|lappend\\|lindex\\|linsert\\|list\\|llength\\|next\\|open\\|proc\\|puts\\|regexp\\|regsub\\|return\\|seek\\|self\\|set\\|socket\\|source\\|split\\|subst\\|switch\\|tell\\|throw\\|time\\|try\\|while\\|yield\\)\\b" 1 'font-lock-keyword-face)
))
)
)
;; punctuation face
(defface punc-symbol-face
'((t :foreground "#ff63d0" :weight bold))
"Face for special symbols in script mode."
:group 'prog-mode)
(provide 'tcl-like-mode)
;;;
在~/.emacs里调用tcl-like-mode.el，如下：
(add-to-list 'load-path "~/elisp/tcl-like-mode")
(require 'tcl-like-mode)
(setq auto-mode-alist
(rassq-delete-all 'tcl-mode auto-mode-alist))
(setq interpreter-mode-alist
(rassq-delete-all 'tcl-mode interpreter-mode-alist))
(add-to-list 'auto-mode-alist '("\\.tcl\\'" . tcl-like-mode))
(add-to-list 'auto-mode-alist '("\\.cmd\\'" . tcl-like-mode))
(add-to-list 'auto-mode-alist '("\\.do\\'" . tcl-like-mode))
(add-to-list 'auto-mode-alist '("\\.enc\\'" . tcl-like-mode))
(add-to-list 'auto-mode-alist '("\\.sdc\\'" . tcl-like-mode))
(add-to-list 'auto-mode-alist '("\\.view\\'" . tcl-like-mode))

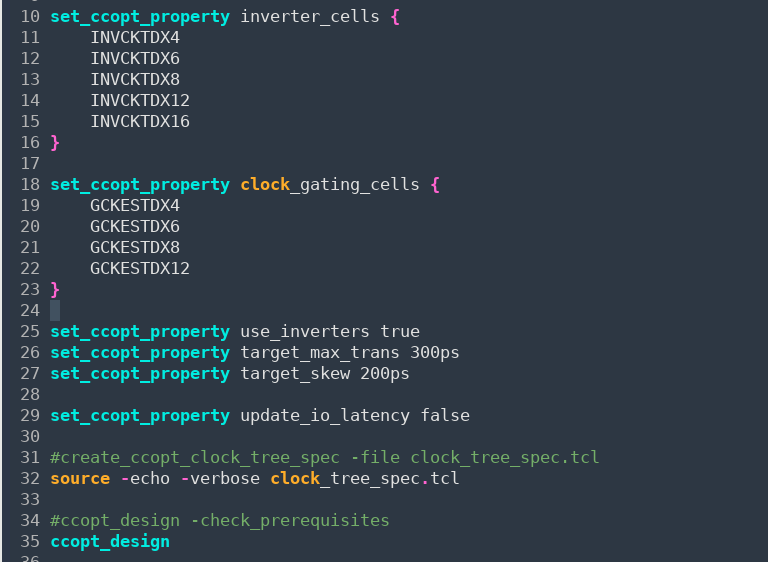

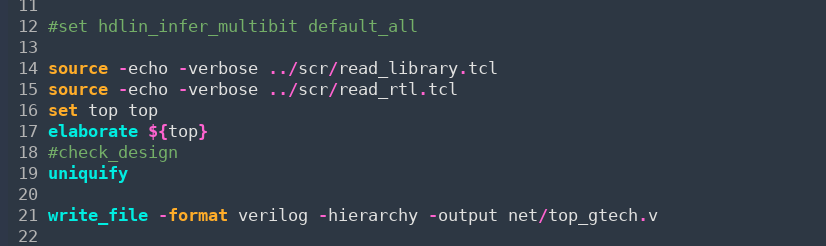

效果如下图：
